Bootstrap Slider
>제품소개 > 에스컬레이터

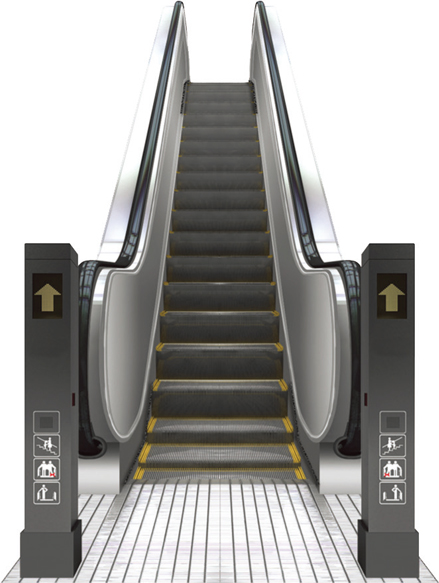

30˚/35˚ HEAVY DUTY PUBLIC
TRAFFIC TYPE ESCALATOR


30˚/35˚ PUBLIC TRAFFIC
TYPE ESCALATOR
30˚/35˚
HEAVY DUTY
PUBLIC TRAFFIC
TYPE ESCALATOR
MAIN SPECIFICATION
INSTALLATION PLACE
Semi-outdoor / out door
TRANSIT / RUNNING TIME
24hrs / day
VERTICAL HEIGHT
3~24m
INCLINATION
30°m
STEP WIDTH
800 / 1,000mm
HORIZONTAL STEP
4 steps
UPSIDE CURVATURE RADIUS
OF ESCALATOR STEPS
3,000mm
RATED SPEED
0.5m / sec, 0.62m / sec
DELIVERY CAPACITY
0.5m/sec : 4,800 / 6,000 People / hr
0.65m/sec : 5,900 / 7,300 people / hr
LIGHTING POWER
3 phase, 380 / 440V, 50&60Hz
LIGHTING POWER
1 phase, 220V, 50&60Hz
